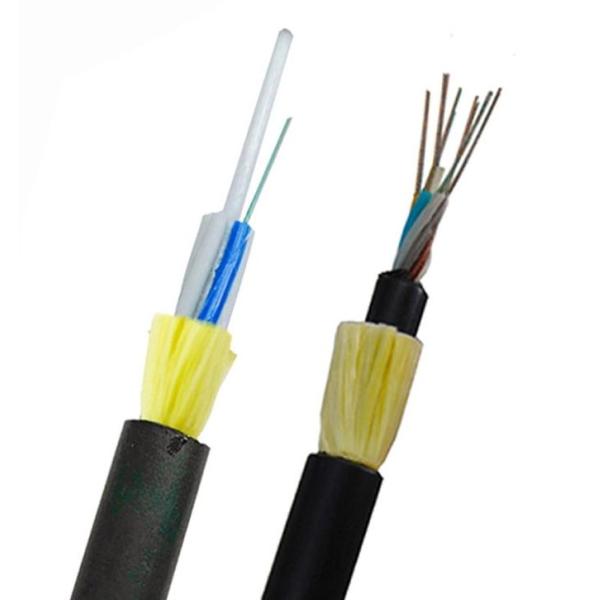

All-Dielectric Self-Supporting Outdoor Aerial ADSS 48 Core Fiber Optic Cable Span 100-1000m

Name: AllDielectric SelfSupporting Outdoor Aerial ADSS 48 Core Fiber Optic Cable Span 1001000m
Brand: MingTong
Price: 500 USD

China All-Dielectric Self-Supporting Outdoor Aerial ADSS 48 Core Fiber Optic Cable Span 100-1000m wholesale

Brand Name : MingTong

Certification : ISO

Place of Origin : Dongguan CHINA

Price : 500-5000RNB/KM

Payment Terms : L/C,T/T

Delivery Time : It depends on the actual situation

MOQ : 20km

Packaging Details : Wooden scroll + cardboard box / Wooden scroll + wooden board

Supply Ability : 200km/Day

Central Strength Member : FRP

Fiber Type : G652D, G657A1, G657A2

Fiber Count : 48 Fibers

Span : 100m, 150m, 200m, 250m, 300m,350m, 400m,450m,500m, Etc,

Jacket Material : PE Or AT

Operating Temperature : From -40 To +70

Application : Telecommunication, Aerial, Duct, Telecom, Network

Highlight : All Dielectric 48 Core Fiber Optic Cable, Aerial ADSS 48 Core Fiber Optic Cable, Outdoor ADSS 48 Core Fiber Optic Cable

Name : ADSS Cable

Contact Now

ADSS All-dielectric Self Support Outdoor Aerial

Fiber Optic Cable For 48 core

All-Dielectric Self-Supporting Outdoor Aerial ADSS 48 Core Fiber Optic Cable Span 100-1000m

Description

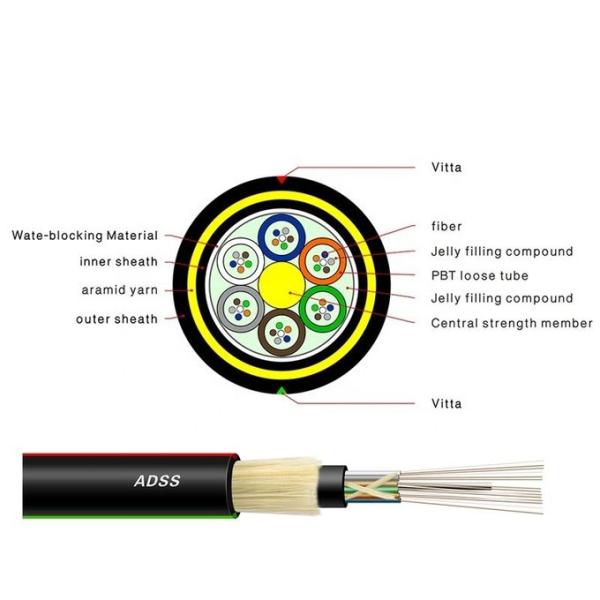

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.

Features

All-dielectrical self-supporting aerial fiber optic cable, no metal material in the structure
Large number of fiber cores, light weight, can be installed with power line, saving resources
Adopt high tensile strength aramid material to withstand strong tension and prevent cockles and gunshots
Small thermal expansion, the varation of the arc of the cable line is small when the temperature changes greatly
Double layer of aramid yarn as strength member, meet the harsh enviroment such as the high-altitudes salt lake area or the line with a span of more than 800 meters
Three layer sheath, PE/AT as outer jacket

Specifications

Cable fiber count				/	2~30	32~60	62~72
Structure				/	1+5	1+5	1+6
Fiber style				/	G.652D
Central strength member			material	mm	FRP
			Diameter (average)		1.5	1.5	2.1
Loose Tube			Material	mm	PBT
			Diameter (average)		1.8	2.1	2.1
			Thickness(average)		0.32	0.35	0.35
			Max fiber/loose tube		6	12	12
			Tubes color		Full color identification
			Fiber excess length	%	0.7~0.8
Water resistance			Material	/	Cable jelly
Inner sehath			material	mm	MDPE
			Inner sheath		0.9mm
Non-metallic strengthen components			Material	/	Aramid Yarn
Outer sheath			material	mm	MDPE
			Outer sheath		1.8mm
Cable diameter(average)				mm	10.9	11.5	12.1
Cable weight (Approximate)				kg/km	95	110	120
Cable Sectional area				mm2	93.31	103.87	114.99
Attenuation coefficient(Max)	1310nm			dB/km	0.35
	1550nm				0.21
Rated Tensile Strength(RTS)				kn	6
Max allowed tension( MAT)				kn	2.5
Annual average operating tension (EDS)				kn	3.2
Young's modulus				kn/mm2	7.8
Coefficient of thermal expansion				10-6/℃	9
Crush resistance		Long term		N/100mm	1100
		Short term			2200
Permission Bent Radius		static		mm	15 of OD
		dynamic			20 of OD
Temperature		When laying		℃	-20~+60
		Storage and transportation			-40~+70
		runing			-40~+70
Scope of application		Suitable for voltage level under 110kV, wind speed below 25m/s, icing 5mm
Cable Marks		Company Name ADSS-××B1-PE-100M DL/T 788-2001 ××××M Year (Or at customer’s request)

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.
