Technical Specifications of Optical Fiber Cable
Optical Fiber Characteristics
The characteristics of the ITU-T G.652.D optical fiber, including optical, geometrical, mechanical, and environmental aspects, shall conform to the table below.
| Characteristics | Specified Values | Units |
| Optical Characteristics |
| Mode field diameter | at 1310nm | 9.1±0.5 | µm |
| at 1550nm | 10.3 ± 0.7 | mm |
| Attenuation coefficient | at 1310nm | ≤0.36 | dB/km |
| at 1550nm | ≤0.23 | dB/km |
| Attenuation non-uniformity | ≤0.05 | dB |
| Zero dispersion wavelength ( λ0) | 1300 ～1324 | nm |
| Max zero dispersion slope (S0max) | ≤0.092 | ps/(nm2·km) |
| Polarization mode dispersion coefficient(PMDQ) | ≤0.2 | |
| Cut-off wavelength (λcc) | ≤1260 | nm |
| Dispersion coefficient | 1288～1339nm | ≤3.5 | ps/(nm·km) |
| 1550nm | ≤18 | ps/(nm·km) |
| Effective group index of refraction (Neff) | at 1310nm | 1.466 | － |
| at 1550nm | 1.467 | － |
| Geometric characteristic |
| Cladding diameter | 125.0±1.0 | µm |
| Cladding non-circularity | ≤1.0 | % |
| Coating diameter | 245.0±10.0 | µm |
| Coating-cladding concentricity error | ≤12.0 | µm |
| Coating non-circularity | ≤6.0 | % |
| Core-cladding concentricity error | ≤0.8 | µm |
| Cladding / coating concentricity error | ≤12.0 | µm |
| Mechanical characteristic |
| Curling | ≥4 | m |
| Proof stress | ≥0.69 | GPa |
| Coating strip force | Average value | 1.0-5.0 | N |
| Peak value | 1.3-8.9 | N |
| Macro bending loss | Ф60mm, 100 circles, at 1550nm | ≤0.05 | dB |
| Ф32mm, 1 circles, at 1550nm | ≤0.05 | dB |
| | | | | |
Characteristics of Cable
Cable Construction and Parameter

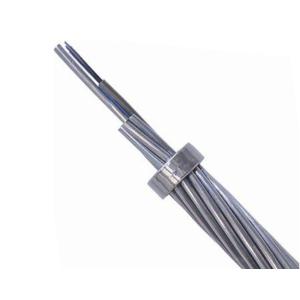

Overhead ground wire made of aluminum-clad steel wire (AS) and stainless steel tube containing optical fiber.
Cable type: OPGW-48B1.3-190[205;185.4]
Cross section of OPGW
| Structure | | Material | No. | Material Diameter |
| Fiber | G.652.D | 48 | |
| Center | 20%AS wire | 1 | Diameter | 4.0mm |
| Layer 1 | SUS Tube | 4 | Diameter | 4.0mm |
| 20%AS wire | 2 | Diameter | 4.0mm |
| Layer 2 | 20%AS wire | 12 | Diameter | 4.0mm |
Specification of OPGW
| Items | Technical Data |
| Stranded | Core, layer 1, layer 2 |
| Stranding direction | Outer layer is right hand |
| Cable diameter (Nominal) | 20.0mm |
| Cable Weight (Approx.) | 1365kg/km |
| Supporting Cross Section | AS Wire | 188.5mm2 |
| Rated Tensile Strength (RTS) | 205kN |
| Modulus of Elasticity (E-Modulus) | 162.0kN/mm2 |
| Thermal Elongation Coefficient | 13.0×10-6/K |
| Maximum Working Stress (40%RTS ) | 82.0kN |
| Everyday Stress(EDS)(18%～25%RTS) | 36.9~51.25kN |
| DC Resistance at 20℃ | 0.442 ohm/km |
| Short time current (1.0s, 40℃～200℃) | 13.62kA |
| Short time current Capacity I2t | 185.4kA²s |
| Minimum bending radius | Installation | 30 times of cable diameter |
| Operation | 15 times of cable diameter |
| Temperature Range | Installation | -10℃~+60℃ |
| Storage & shipping | -40℃~+60℃ |
| Operation | -40℃~+80℃ |
| | | | |
Fiber and Loose Tube Color Identification
The individual fiber and loose tubes shall comply with standard TIA/EIA-598-A and the following color code.
Steel tube 1 (No.1-12 fibers) : Single mode optical fiber (SM)
Fiber Colors
| NO. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Blue | Orange | Green | Brown | Grey | White | Red | Nature | Yellow | Violet | Pink | Aqua |
| | | | | | | | | | | | | |
Steel tube 2 (No.13-24 fibers) : Single mode optical fiber (SM)
One black tracer (50mm pitch)
| NO. | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
| Color | Blue | Orange | Green | Brown | Grey | White | Red | Nature | Yellow | Violet | Pink | Aqua |
| | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ |
Steel tube 3 (No.25-36 fibers) : Single mode optical fiber (SM)
One black tracer (100mm pitch)
| NO. | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 36 |
| Color | Blue | Orange | Green | Brown | Grey | White | Red | Nature | Yellow | Violet | Pink | Aqua |
| | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ |
Steel tube 4 (No.37-48 fibers) : Single mode optical fiber (SM)
One black tracer (150mm pitch)
| NO. | 37 | 38 | 39 | 40 | 41 | 42 | 43 | 44 | 45 | 46 | 47 | 48 |
| Color | Blue | Orange | Green | Brown | Grey | White | Red | Nature | Yellow | Violet | Pink | Aqua |
| | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ | ▌ |
Installation Recommendations
Installation procedure:
We recommend using IEEE Std 524-1992 and our company's procedures for installing OPGW.
Packing & Shipping
Standard Packaging: Wooden Drums. 2000m to 6000m/drum or other required.
